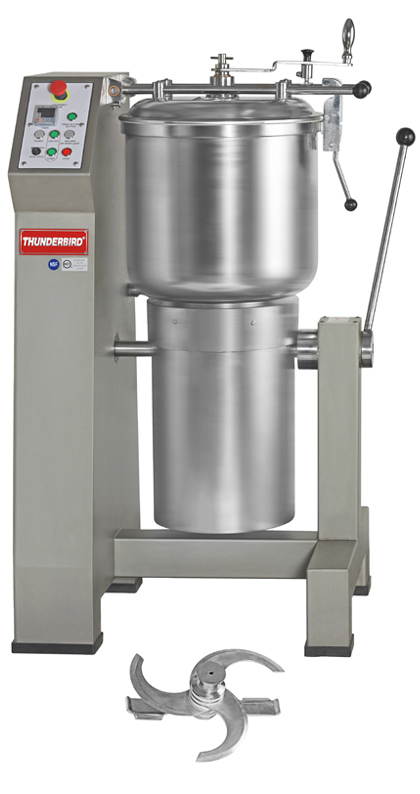

Vertical Cutter Mixer

VCM-60 / VCM-120

Specifications
Electrical:

VCM-60: 15Hp, 220V, 60Hz, 3phase

VCM-120: 20Hp, 220V, 60Hz, 3phase
Dimensions:

VCM-60: 26" (L) x 37"(W) x 57.9"(H) or
660mm (L) x 940mm (W) x 1470mm (H)

VCM-120: 50"(L)x 30"(W)x 72"(H) or
1130mm(L)x 760mm(W)x 1570mm(H)

Capacity:

VCM-60: 60 liters

VCM-120: 120 liters
Weight:

VCM-60: 518lbs or 235kg

VCM-120: 738 lbs or 335 kgs
Speed: 1800 rpm / 3600 rpm.
Timer: Digital timer up to 99 minutes.
