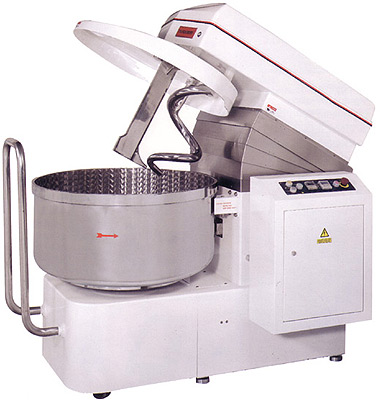

Spiral Mixer ASP-200

"Spiraling the competitor out of control"

Design

20Hp spiral mixer with removable bowl designed especially for heavy dough like pizza and bagel. Long lasting stainless steel 318 qt bowl that can handle "440 lbs of dough with plastic cover to prevent flour flow out.

Two speed motor with timer and separate bowl drive motor. Bowl jog control makes for easy unloading. Interlocked bowl guard switch prevents operation when guard is up. 220V/380V, 50Hz/60Hz, 3 phase.

Specifications
Capacity:
Flour capacity (kg)/(lbs)
128/282
Dough capacity (kg)/(lbs)
200/440
Bowl capacity (qts)
336
Dia. of bowl (mm)
900mm/36in
Height of bowl (mm)
450mm/17.80in
Motor:
Horsepower
20Hp / 2HP
1st speed (kw)
7.5
2nd speed (kw)
15.0
Bowl(kw)
3.0
Dimensions:
Width (mm)
1120mm/37in
Length (mm)
1760mm/66in
Height(mm)
1410mm/58.5in
Machine Weight  (kg/lb):
850/1870
