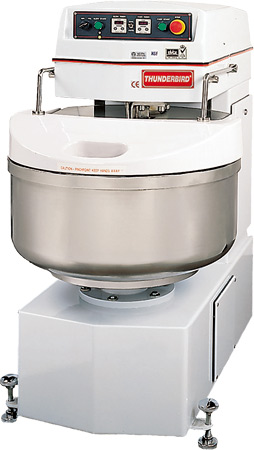

Spiral Mixer ASP-160

"Spiraling the competitor out of control"



Design

15Hp spiral mixer designed especially for heavy dough such as pizzas and bagels. This machine is designed with a long lasting stainless steel 280 qt bowl that can handle 352 lbs of dough and is equiped with a plastic cover to prevent flour flow out.

Two speed motor with timer and separate bowl drive motor. Bowl jog control makes for easy unloading. Interlocked bowl guard switch prevents operation when guard is up. 220V/380V, 50Hz/60Hz, 3 phase.

Specifications

Capacity:
Flour capacity (kg)/(lbs)
100/220
Dough capacity (kg)/(lbs)
160/352
Bowl capacity (qts)
281
Dia. of bowl (mm)
900mm/36in
Height of bowl (mm)
450mm/17.80in
Motor:
Horsepower
15Hp / 1HP
1st speed (kw)
5.63
2nd speed (kw)
11.25
Bowl(kw)
0.75
Dimensions:
Width (mm)
960mm/37in
Length (mm)
1620mm/57in
Height(mm)
1500mm/59in
Machine Weight  (kg/lb):
680/1498
