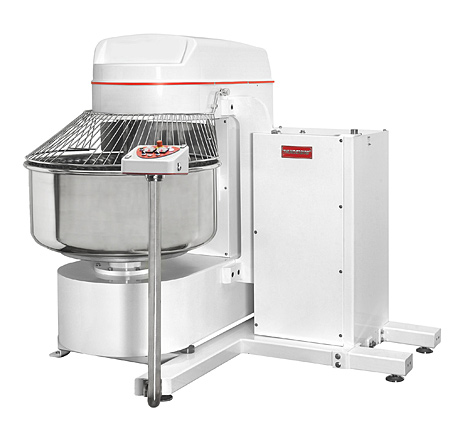

Spiral Mixer ASP-160(LT)
Reinforced & Self-Empty
"Spiraling the competitor out of control"
|
|
- Voltages available:220V,380V,400V,440V,50Hz/60Hz, 3phase.
- Simple to use, manual or automatic digital control panel.
- Hydraulic lifting and lowering system.
- Equipped with European Spiral Hook, Dough Knife and Bowl.

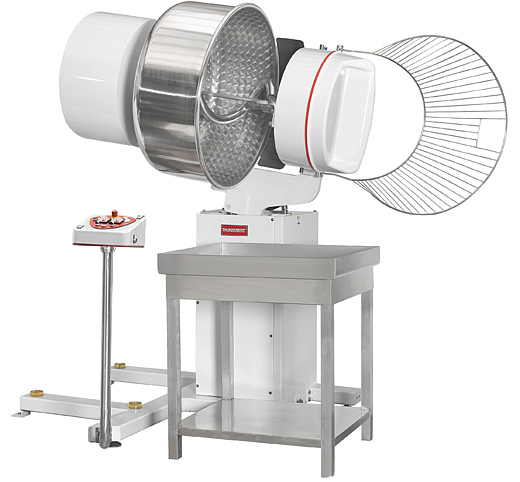

- Easy dough extraction controlled by the bowl jog switch.
- Possible discharge height: into Divider at 1900 mm.
- Possibility of bowl reverse rotation in 1st speed.
- Mixers designed with electronic control panel for higher efficiency.
- 2 powerful heavy duty motors, one for Bowl and one for the Hook
- Bowl, Dough Knife and Spiral Hook are Stainless steel.
- Superior torque transmission which eliminates vibration and noise for heavy loads.
- Metal-rubber composite gear type, non-slipping.
- Heavy duty frame with lead-free baked painting for easy cleaning.
- Motor overload protection.
- NSF, CE, ETL approval.
|
|
|
| Capacity: |
Flour capacity (kg)/(lbs) |
100/220 |
Dough capacity (kg)/(lbs) |
160/352 |
Bowl capacity (qts/ltrs) |
281 / 266 |
Dia. of bowl (mm) |
900mm/36in |
Height of bowl (mm) |
420mm/16.53in |
|
| Motor: |
12+2Hp |
| Dimensions: |
77"(L)x65"(W)x71"(H)
or
1950 (L)X1650(W)X1800mm(H) |
|
3113 lbs
or
1415 kgs |
|
|
