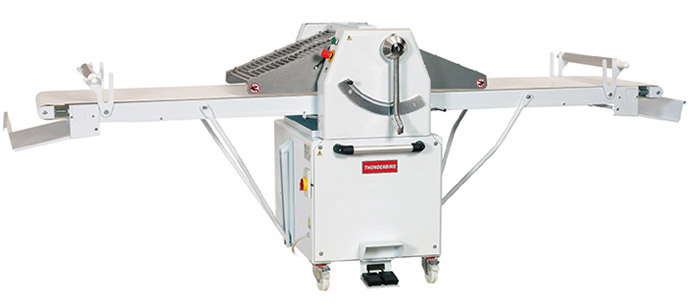

Dough Sheeter TBD-600

(Same shape as TBD-500 with roller length 650mm)

"Sheeters that last through the decades"

Design

1 hp floor model reversible sheeter with 24" of working width and 48" working length conveyors. Linen belt conveyors driven at different speeds. Automatic speed change of conveyors with change of running direction. Equipped with safety guard. Easy to dismantle for cleaning, no tools required. Rollers and folding conveyors make for easy mobility and storage.

Specifications

Type:

Floor

Width of conveyor belts
600mm
Working length

2500mm

Roller Length

650mm

Roller gap

40mm

Rated Power

1HP

Supply Voltage

220V.3 phase

Dimension (LXWXH)

2500*1030*1100mm

Net weight

200 KGs(400lbs)
