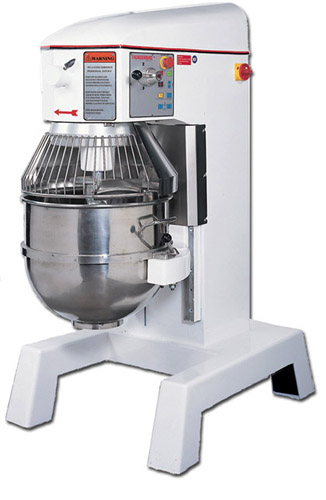

Planetary Mixer ARM-80

"Building the Best Valued Mixers for the Smartest Consumers!"



Design

Heavy-duty, all purpose mixers use a powerful, planetary mixing action to thoroughly blend, mix and aerate all ingredients with consistent and predictable results.

*Same shape as ARM-60 but 80-quart mixer runs a 5Hp motor.

Features

  • 80-quart capacity
  • 1-99minute timer for continuous or timed operation
  • Powerful 5 Hp motor
  • 6-Speed (3 speed gear box with two speed motor)
  • 220v/60/3, 50amps (440v/60/3 and 440v/50/3 available at additional cost)
  • Transmission: Wide-faced, hardened alloy steel, helical gears fully sealed in transmission lubricant with heavy-duty ball bearings and clutch combine for highly dependable, quiet operation.
  • Motor cooling system.
  • New safety Guard available.
  • NSF approved coating.
  • Baked painting.
  • Moisture resistant switches
  • Motor thermal protector.
  • No-volt Release: Prevents activation of the mixer in the event of power interruption
  • Bowl lift: Manual bowl lift operated and self-locking in to position
  • #12 size taper hub for attachments
  • Cast base construction. Silver metallic finish using epoxy powder coat enamel for easy cleaning
  • Attached 6-foot, flexible, 3-wire cord and plug for grounded receptacle


Standard Accessories

  • 80-quart s/steel bowl.
  • Flat batter beater
  • Spiral dough hook
  • Wire whip
  • Safety bowl Guard
  • Attachment hub

Optional Accessories

  • #12 taper hub meat grinder (ARM-02A)
  • #12 taper hub Vegetable shredder with plate holder (ARM-02B)
  • Bowl dolly
  • Reduction set
  • EXTENDED WARRANTY up to 6 years



Specifications

Motor:
6-Speed (3 speed gear box with two speed motor)
5Hp continuous
60 amps
Electrical:
220/60/3
440v/60/3 and 440v/50/3 available
Speed Range:
Beater: 18-100
Hub: 38-228
Weight:
Net: 1025lbs (466kg)
Ship: 1200lbs (538kg)
Dimensions:
Width: 32'' (813mm)
Depth: 43.8'' (1113mm)
Height: 66'' (1676mm)

Shipping:
Width: 33.8'' (858mm)
Depth: 47'' (1193mm)
Height: 71.8'' (1828mm)
