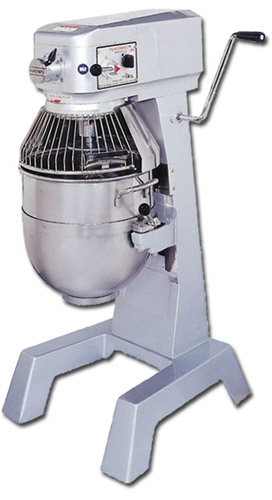

Planetary Mixer ARM-40

"Building the Best Valued Mixers for the Smartest Consumers!"



Design

Heavy-duty, all purpose mixers use a powerful, planetary mixing action to thoroughly blend, mix and aerate all ingredients with consistent and predictable results.

Features

  • 40-quart capacity
  • 1-15minute timer for continuous or timed operation
  • Powerful 1.5 HP motor
  • 115v/60/1, 30amps (220v/60/1 and 220v/50/1 available at additional cost)
  • 3-Speed gear box
  • Transmission: Wide-faced, hardened alloy steel, helical gears fully sealed in transmission lubricant with heavy-duty ball bearings and clutch combine for highly dependable, quiet operation.
  • Motor cooling system.
  • New safety Guard available.
  • NSF approved coating.
  • Baked painting.
  • Moisture resistant switches
  • Motor thermal protector.
  • No-volt Release: Prevents activation of the mixer in the event of power interruption
  • Bowl lift: Manual bowl lift operated and self-locking in to position
  • #12 size taper hub for attachments
  • Cast base construction. Silver metallic finish using epoxy powder coat enamel for easy cleaning
  • Attached 6-foot, flexible, 3-wire cord and plug for grounded receptacle


Standard Accessories

  • 40-quart s/steel bowl.
  • Flat batter beater
  • Spiral dough hook
  • Wire whip
  • Safety bowl Guard
  • Attachment hub

Optional Accessories

  • #12 taper hub meat grinder (ARM-02A)
  • #12 taper hub Vegetable shredder with plate holder (ARM-02B)
  • Bowl dolly
  • Reduction set
  • EXTENDED WARRANTY up to 6 years



Specifications

Motor:
3-speed
1.5HP continuous
30 amps
Electrical:
115/60/1
220v/60/1 and 220v/50/1 available
Speed Range:
Beater: 46-150
Hub: 105-338
Weight:
Net: 415lbs (189kg)
Ship: 490lbs (223kg)
Dimensions:
Width: 25'' (635mm)
Depth: 25'' (560mm)
Height: 46'' (1168mm)

Shipping:
Width: 28'' (711mm)
Depth: 28'' (711mm)
Height: 52'' (1320mm)
